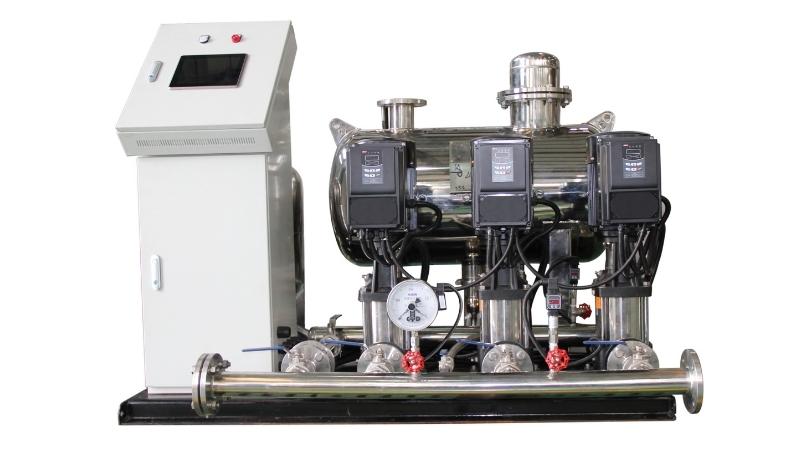

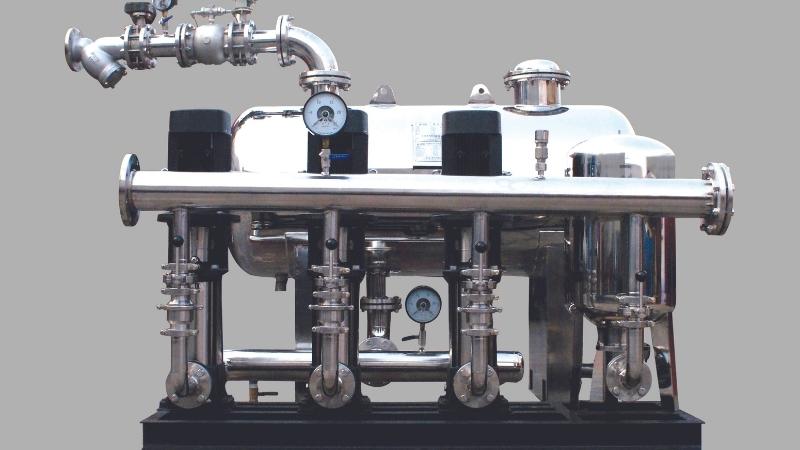

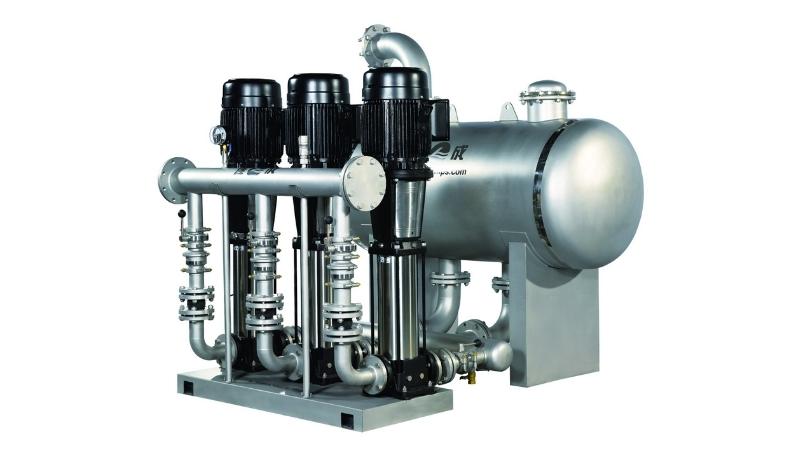

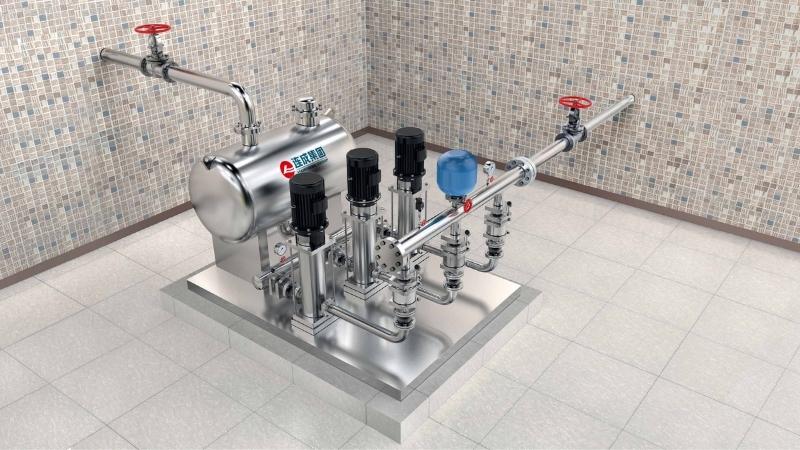

ZWL(I) Water Supply System

Description

Reviews

Product Overview

1. This kind of equipment is fully enclosed and does not contact with air, and all over-current parts are made of food-grade 304 stainless steel, which is hygienic and corrosion-resistant, ensuring the cleanliness and hygiene of water quality.

2. This equipment can not only prevent negative pressure, but also make the laminating time long and stable. The energy-saving effect is obvious.

3. It can automatically compensate the pressure difference caused by the pressure drop of the municipal pipe network during the peak hours.

Main Application

In areas where the municipal pipe network has sufficient water resources, is relatively stable or fluctuates little.

Performance Range

Flow range: 0~5000m³/h

Pressure range: 0~2.5 MPa

Control power: ≤355 KW

Pressure adjustment accuracy: ≤ 0.01MPa

Working Conditions

Ambient temperature: 5-40℃

Medium temperature: 4-70℃

Air relative humidity: ≤ 85% (at 20 5℃)

Power supply voltage: 380 V (+5%,-10%)

Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
