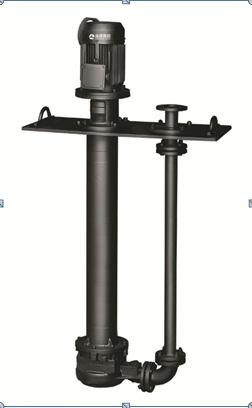

YW(P) Series Under-liquid Sewage Pump

Description

Reviews

Product Overview

The second generation YW(P) series submerged sewage pump is a new patented product developed by our group for transporting all kinds of sewage under harsh working conditions. Based on the existing first-generation products, it absorbs advanced technology at home and abroad and adopts the hydraulic model of WQ series submersible sewage pump with excellent performance.

YW(P) series submerged sewage pump not only has all the excellent performance of WQ submersible sewage pump, but also greatly expands the application conditions and occasions of WQ submersible sewage pump due to its unique installation form.

Main Application

Suitable for steel mills, power plants, coal plants, mines, hospitals, municipal, chemical, pharmaceutical, construction, hotels, restaurants, seawater pumping and other industries. Used for conveying industrial sewage, urban domestic sewage or rainwater and clean water of particles and fibers. It can also be used in some chemical processes.

Performance Range

Flow range: 5-1500m³/h

Lift range: 4-60m

Motor power: 1.5-110KW

Diameter range: DN25-DN350

Submerged depth range: 0.6-5m

Power supply voltage: 380V-660V, 6Kv and 10Kv

Working Conditions

1, the medium temperature does not exceed 50℃;

2. If the medium density is less than 1200 kg/m and greater than 1200 kg/m, it should be stated when ordering;

3. The pH value of the medium is in the range of 5-11;

4.The power of the sample is that the depth under the liquid is less than 1.8 meters.

If the depth exceeds, it may need to be increased by one step, lease consult the technical support of the headquarters for selection.

Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
