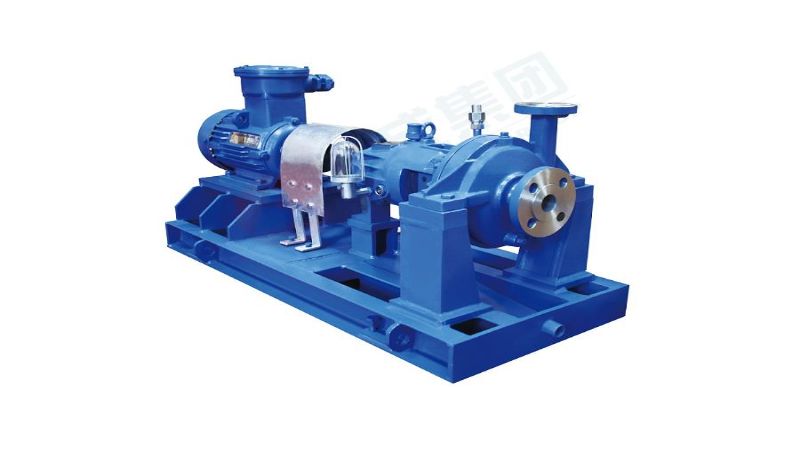

XL series small-flow chemical process pumps are horizontal single-stage single-suction centrifugal pumps. Design and manufacture according to the eighth edition of API610 "Centrifugal Pump for Petroleum, Heavy Chemical and Natural Gas Industry". This series of pumps are designed according to the design theory of small flow and high lift, which has excellent hydraulic performance, high efficiency and good cavitation performance.

Main Application

It can transport all kinds of clean, flammable, explosive and corrosive media containing trace particles. Mainly used in chemical industry, petroleum industry, refineries, power plants, paper and medicine, food, sugar and other industries.

Product Features

1.Standardization: the pump body is a special part, and other parts are common with Z series;

2.The sealing system can be equipped with packing seal, single end face, double end face and series mechanical seal according to the working conditions;

Performance Range

Flow range: 0.8~12.5m³/h

Lift range: 12~125m

Applicable temperature: -80~450℃

Design pressure: ~2.5MPa
