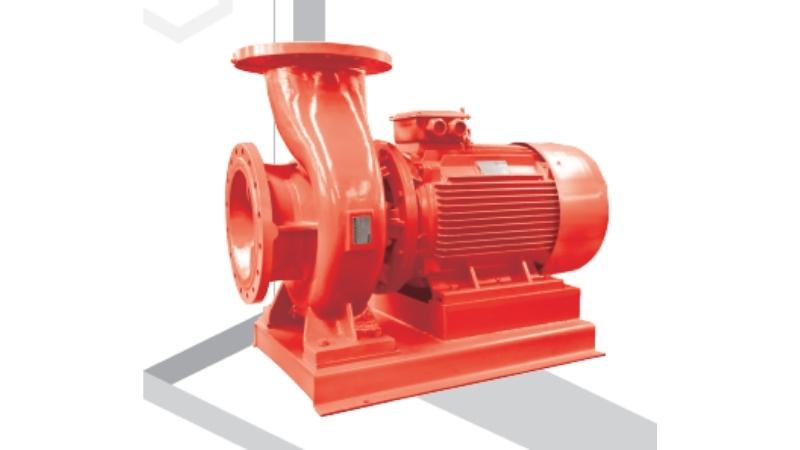

XBD-W New Series Horizontal Single-stage Fire Pump

Description

Reviews

Product Overview

XBD-W new series horizontal single-stage fire pump set is a new product developed by our company according to market needs. Its performance and technical conditions meet the requirements of the newly promulgated GB 6245-2006 "Fire Pump" standard. The products have been appraised by the fire product conformity assessment center of the Ministry of Public Security and obtained CCCF fire protection certification.

Main Application

XBD-W new series of horizontal single-stage fire pumps can be used to transport liquids above 80℃ that do not contain solid particles or have physical and chemical properties similar to clear water, as well as slightly corrosive liquids.

This series of pumps are mainly used for the water supply of fixed fire fighting systems (fire hydrant fire extinguishing system, automatic sprinkler fire extinguishing system and water mist fire extinguishing system, etc.) in industrial and civil buildings.

The performance parameters of XBD-W new series horizontal single-stage fire pump set meet the fire fighting conditions, taking into account the working conditions of domestic (production) water supply. This product can be used for independent fire fighting water supply system, fire fighting, domestic (production) shared water supply system, and also for building, municipal, working condition water supply and drainage and boiler water supply occasions.

Performance Range

Flow range: 5 L/s - 90 L/s

Pressure range: 0.33 MPa -2.4 MPa

Motor speed: 2960 r/min 1480 r/min

Medium temperature: ≤ 80 ℃ clear water

Maximum allowable inlet pressure: 0.4 MPa

Pump inlet and outlet diameter: DN 65-DN 200

Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
