XBD-GDL Series Multi-stage Pipeline Fire-fighting Pump

Description

Reviews

Product Overview

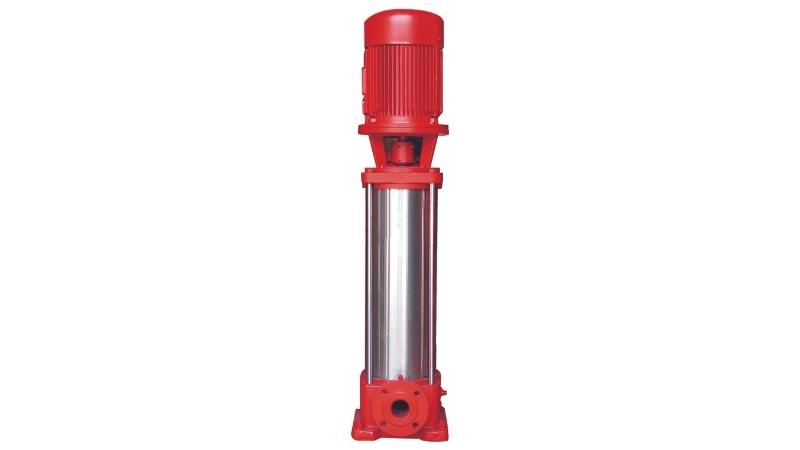

XBD-GDL,a new generation of electric fire pump is a vertical multi-stage pipeline centrifugal pump. This series of products has the advantages of compact structure, light and beautiful appearance, convenient installation and no leakage in mechanical seal. It is optimized by modern excellent hydraulic model, and its performance is designed in strict accordance with the requirements of GB 6245 "Fire Pump" standard.

XBD's new generation of fire pump sets are numerous and reasonable, and there are one or more pump types that meet the design requirements in fire places that meet different working conditions, which greatly reduces the difficulty of type selection.

Main Application

XBD's new generation multi-stage fire pump set can be used to transport slightly corrosive liquid with temperature below 80℃ and without solid particles, clear water or physical and chemical properties similar to clear water.

This series of pumps are mainly used for water supply of fixed fire fighting systems (fire hydrant fire extinguishing system, automatic sprinkler fire extinguishing system and water mist fire extinguishing system) in industrial and civil buildings.

The performance parameters of XBD new generation multi-stage fire pump set meet the requirements of fire fighting conditions, taking into account the working conditions of domestic (production) water supply. This product can be used not only for independent fire fighting water supply system, but also for fire fighting, domestic (production) shared water supply system, and also for buildings, municipalities, industrial and mining water supply and drainage, boiler water supply and other occasions.

Performance Range

Flow range: 1 ~ 45 l/s

Pressure range: 0.3MPa~1.95MPa

Motor speed: 2950r/min

Maximum allowable inlet pressure: 0.4MPa

Pump inlet and outlet diameters: DN25~DN150
