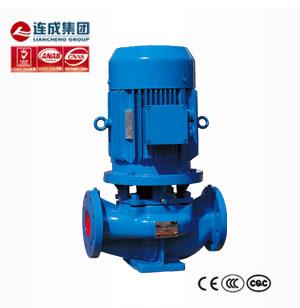

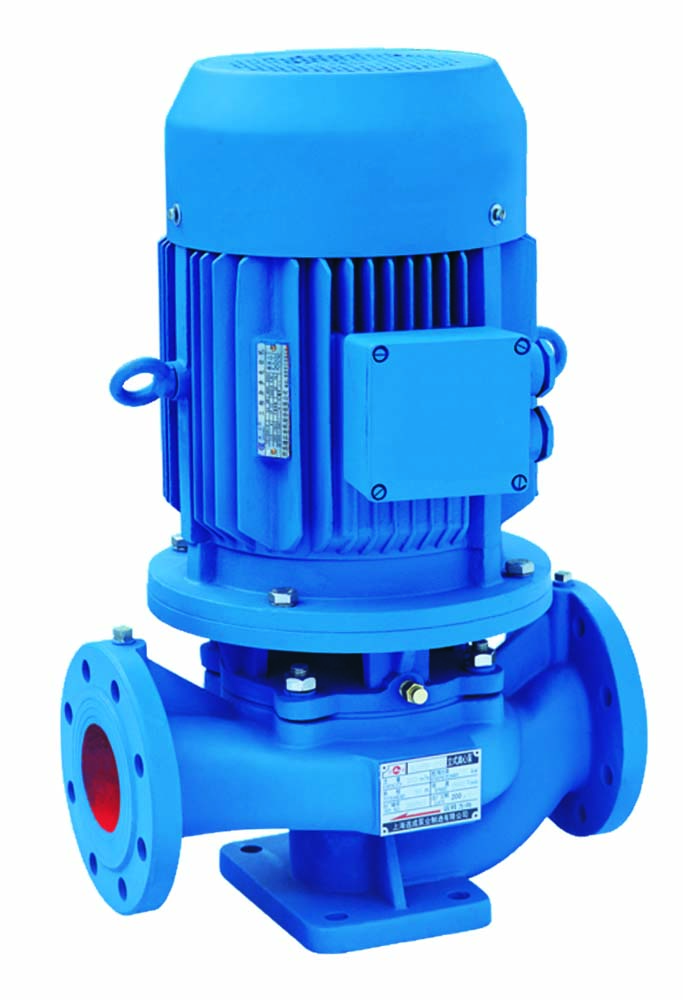

SLS Series Single-stage Single-suction Vertical Centrifugal Pump

Description

Reviews

Product Overview

SLS new series single-stage single-suction vertical centrifugal pump IS a novel product designed and manufactured by our company in strict accordance with the international standard ISO 2858 and the latest national standard GB 19726-2007, which is a novel vertical centrifugal pump that replaces conventional products such as IS horizontal pump and DL pump.

There are more than 250 specifications such as basic type, expanded flow type, A, B and C cutting type. According to different fluid media and temperatures, the series products of SLR hot water pump, SLH chemical pump, SLY oil pump and SLHY vertical explosion-proof chemical pump with the same performance parameters are designed and manufactured.

Performance Range

1. Rotating speed: 2950r/min 1480r/min 980 r/min

2. Voltage: 380 V

3. Diameter: 15-350mm

4. Flow range: 1.5-1400 m³/h

5. Lift range: 4.5-150m

6. Medium temperature:-10℃-80℃

Main Application

SLS vertical centrifugal pump is used for conveying clean water and other liquids with physical properties similar to clean water. The temperature of the medium used is below 80℃. Suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance water supply, heating, bathroom cold and warm water circulation pressurization and equipment matching.

Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
