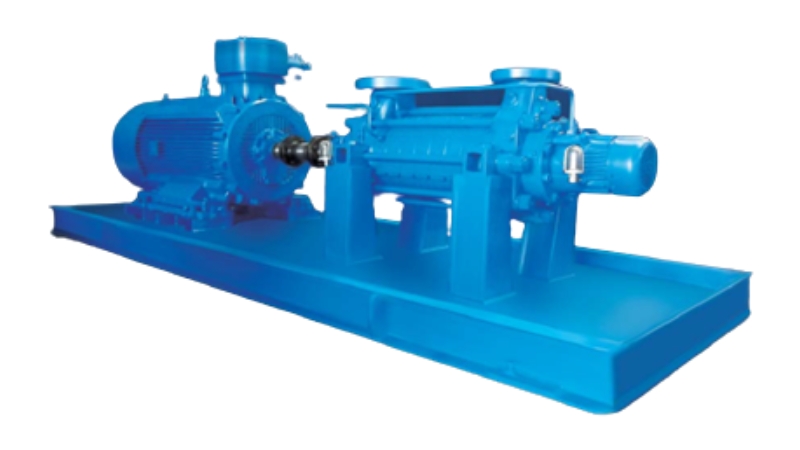

SLMC-BB4 Series End Support Centrifugal Pump

Horizontal Multi-stage Single-suction Centrifugal Pump with Two Ends Supported.

Description

Reviews

Product Outline

SLMC series chemical pumps are horizontal, multistage, single-suction centrifugal pumps supported at both ends. The product is designed according to API610 standard, belonging to BB4 structure, and the design pressure is 10MPa. Suitable for conveying clean, neutral or corrosive media. The pump rotates clockwise when viewed from the driving end.

Product Features

1. The inlet and outlet directions of water pumps can be configured in various ways according to customers' needs.

2. The balance drum is used to balance the axial force, which has good balance effect and low bearing temperature rise.

3. The bearing configuration is cylindrical roller+angular contact bearing to balance the residual axial force.

4. Various flushing schemes can be configured according to the nature of the medium, such as P11, P21, P32, P54, etc.

5. Container mechanical seal design; 6. Standard API610 seal flushing mode and cooling mode; 7. Choose different structural modes according to different medium temperatures, including foot support type and center support type;

Performance Range

Temperature: ≤150 ℃

Flow: ≤ 700 m³/h

Lift: ≤1000 m
