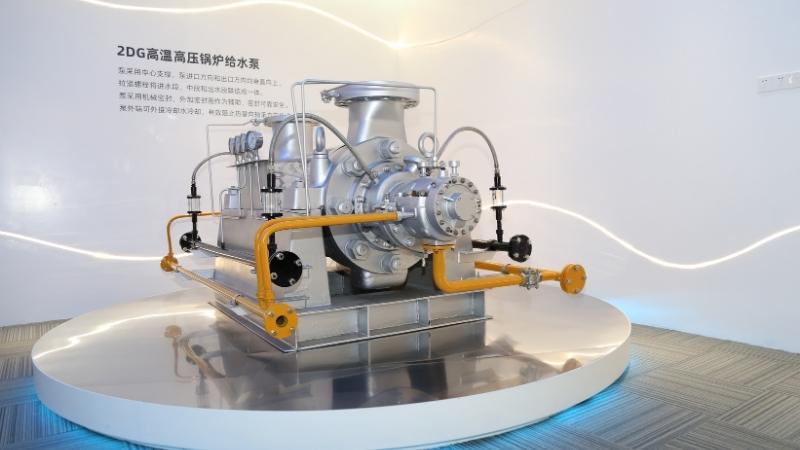

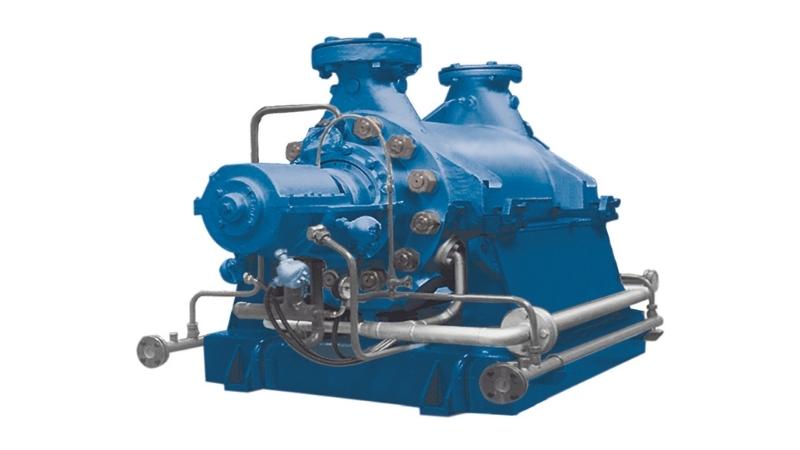

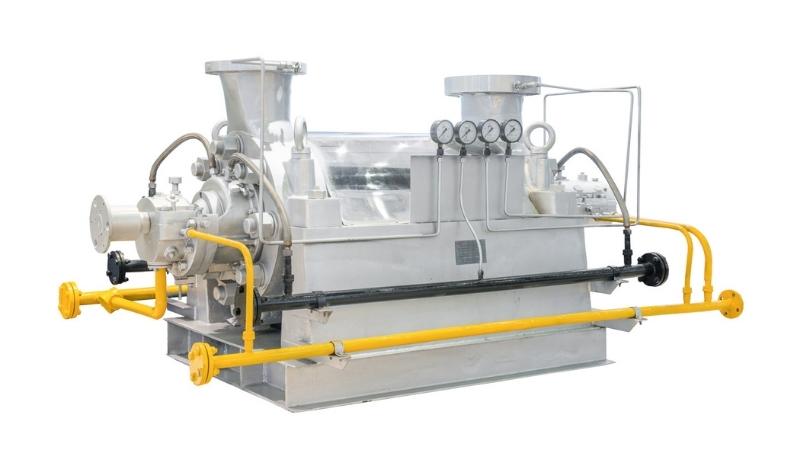

DG Boiler Feed Water Centrifugal Pump

Description
Reviews

Product  Outline

DG boiler feed water pump is a horizontal multistage centrifugal pump, which is suitable for conveying clean water (with impurity content less than 1% and particle size less than 0.1mm) and other liquids with physical and chemical properties similar to clean water.
1. The conveying medium temperature of DG medium and low pressure boiler feed water pump is not more than 105℃, which is suitable for small boiler feed water or conveying similar hot water.
2. The conveying medium temperature of DG type sub-high pressure boiler feed water pump is not more than 160℃, which is suitable for small boiler feed water or conveying similar hot water.
3. The conveying medium temperature of DG high-pressure boiler feed water pump is not more than 170℃, which can be used as high-pressure boiler feed water or other high-pressure fresh water pumps.

Performance Range

DG Medium and Low Pressure:
Flow rate: 20 ~ 300m³/h                Supporting power: 15~450kW
Head: 85~684m                              Inlet diameter: DN65~DN200
DG Secondary High Pressure:
Flow: 15 ~ 300m³/h                        Supporting power: 75~1000kW
Head: 390~1050m                          Inlet diameter: DN65~DN200
DG High Pressure:
Flow rate: 80 ~ 270 m³/h
Head: 967~1920m                          Inlet diameter: DN100~DN250

Working Conditions

1. The conveying medium temperature of DG medium and low pressure boiler feed water pump is not more than 105℃, which is suitable for small boiler feed water or conveying similar hot water.
2. The conveying medium temperature of DG type sub-high pressure boiler feed water pump is not more than 160℃, which is suitable for small boiler feed water or conveying similar hot water.
3. The conveying medium temperature of DG high-pressure boiler feed water pump is not more than 170℃, which can be used as high-pressure boiler feed water or other high-pressure fresh water pumps.
Established in 1993, Liancheng is a professional pump manufacturer. The product category covers more than 5,000 series, which are widely used in national pillar industries such as municipal administration, water conservancy, construction, fire protection, electric power, environmental protection, petroleum, chemical industry, mining, and medicine.
